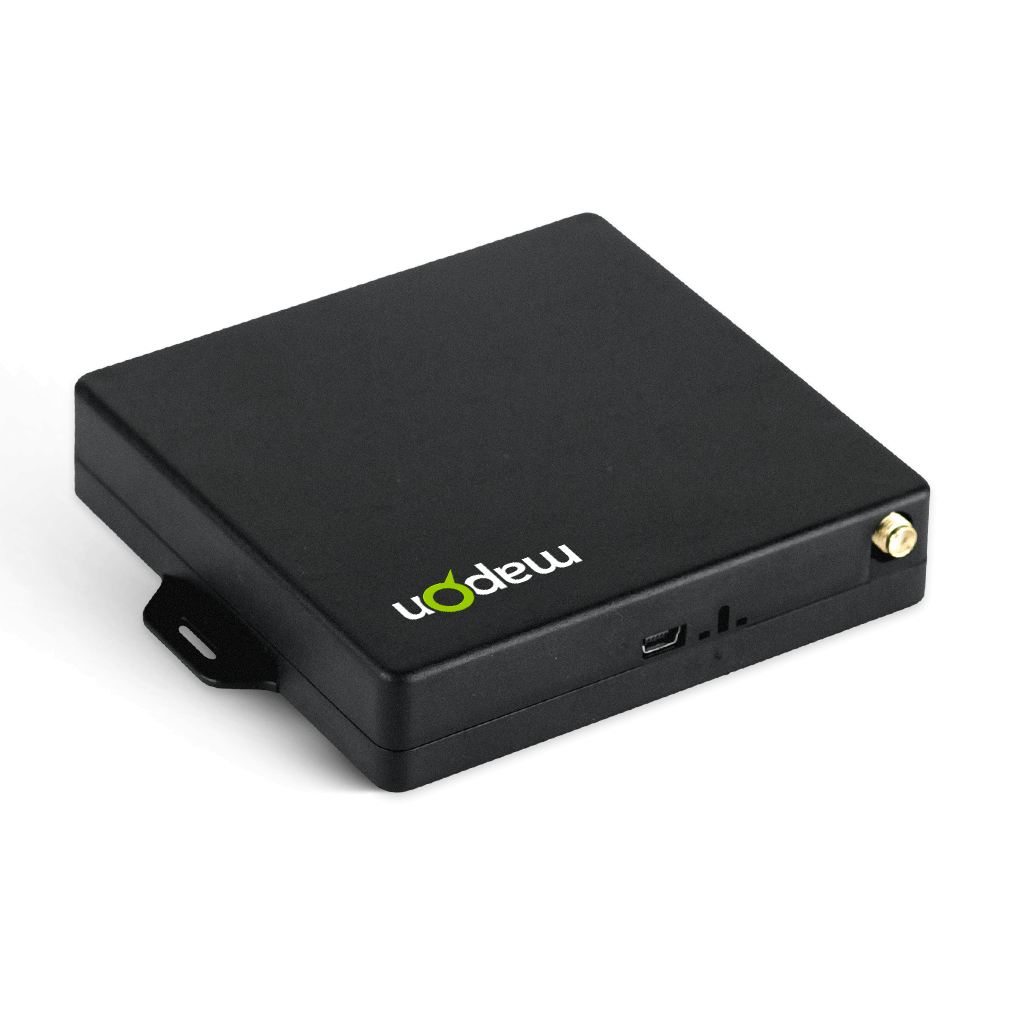

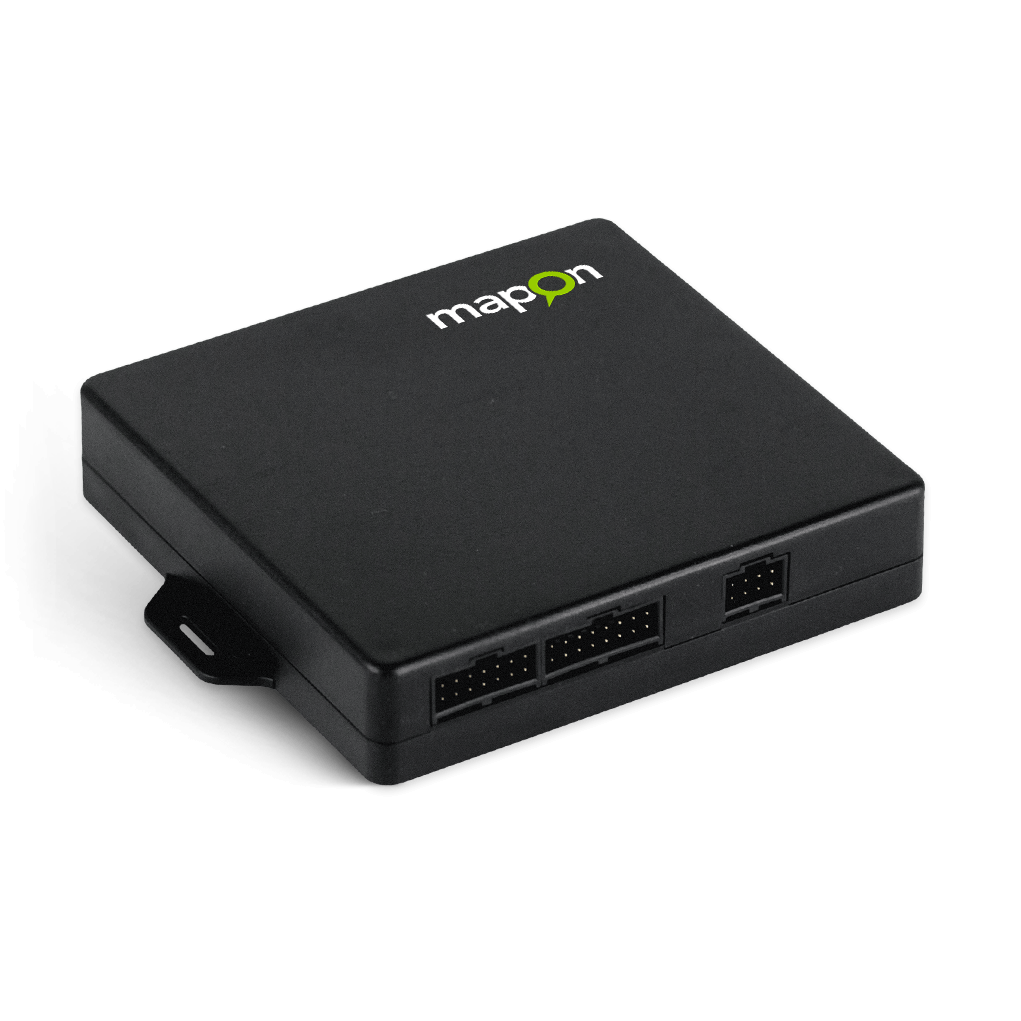

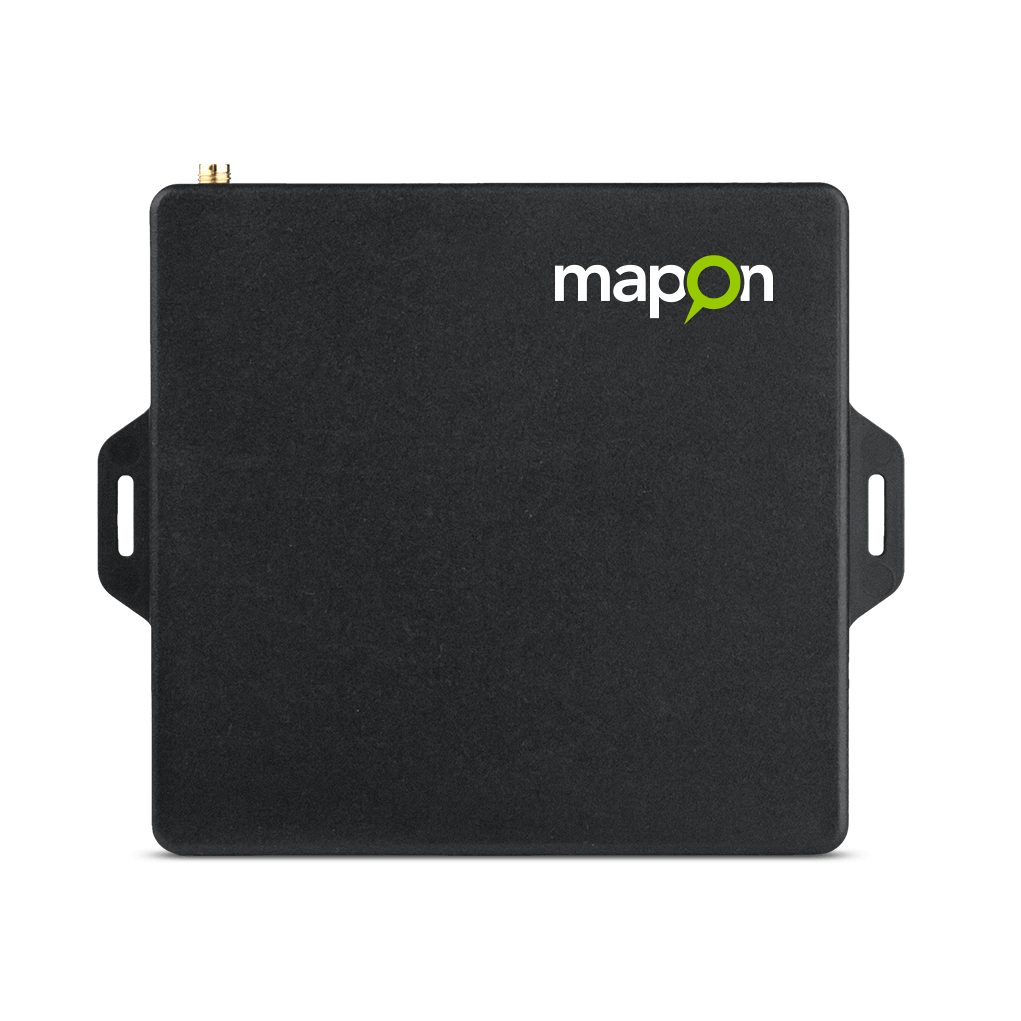

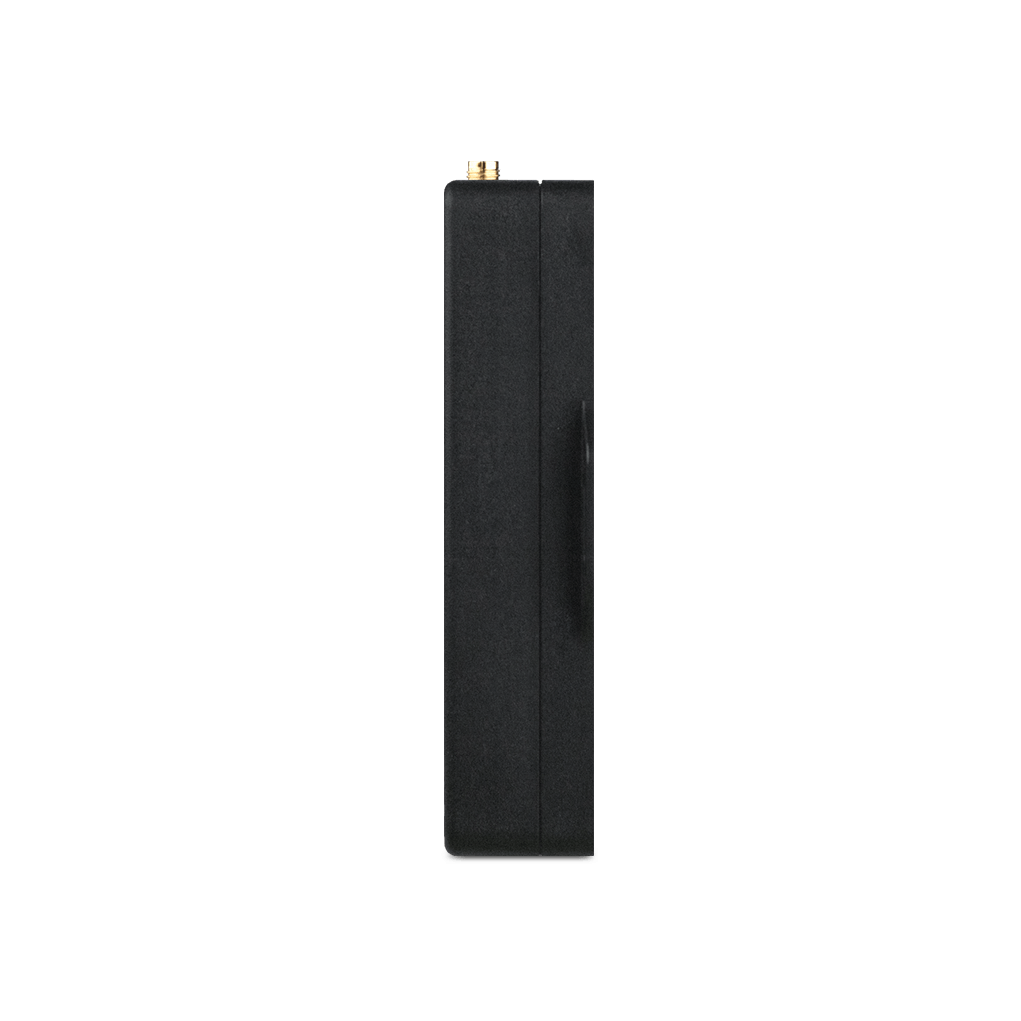

Mapon Expert

Daugiafunkcinis, aukšto tikslumo sekimo įrenginys su įvairiomis sąsajomis priedų prijungimui.

Pasirinkite kiekį 1

Užsakymas ir diegimas

Klausti specialisto

Eimantas Kirdeikis

+370 626 96633

pagalba@mapon.com

Apie produktą

Pagrindinės funkcijos

Raivis Bondars

Mūsų nuomonė apie Mapon Expert

Mapon klientų konsultantas - Raivis Bondars

General

Dydis ir svoris

Aukštis: 101 mm, plotis: 123 mm, gylis: 22 mm, svoris: 140 g

Maitinimas ir akumuliatorius

Li-ion backup battery 700 mAh
Operating voltage 10V to 30V DC
Average current consumption 250 mA

Atmintis

1x 32Mbit SPI Flash memory
2x 16Mbit SPI Flash memory

Inputs and outputs

Digital inputs

One Input reserved for ignition status
Two positive trigger inputs (max 30V)
One negative trigger input

Analog inputs

Three analog inputs (0 to 5V)
One analog input (0 to 30V)

Other

SMA connector for GPS antenna
1-Wire Input (up to 6 devices (temperature sensors DS18S20 and iButton))
2x CANbus interfaces
3x RS232 interfaces. (Digital fuel sensors, Garmin)
USB port for real time monitoring and configuration
1 digital output

GPS/GSM

Cellular

Quad band : GSM 900/1800MHz
Class 4 (+33dBm ±2dB) for 900
Class 1 (+30dBm ±2dB) for 1800
Multislot Class 8 (dual band)
Horizontal position accuracy 2.5 m
Velocity accuracy 0.1 m/s
Heading accuracy 0.5 degrees

Location

50 channels
GPS L1 frequency

Sensitivity

Tracking & Navigation 162 dBm
Reacquisition 160 dBm
Cold Start (without aiding) 148 dBm

Other

LEDs

Green (GPS)
Orange (GSM)
Red (Errors)

Environmental requirements

Operating temperature: -40° to 85° C
Relative humidity: 5% to 95% non-condensing

Standard set

Mapon Expert
External GPS antenna
Documentation
