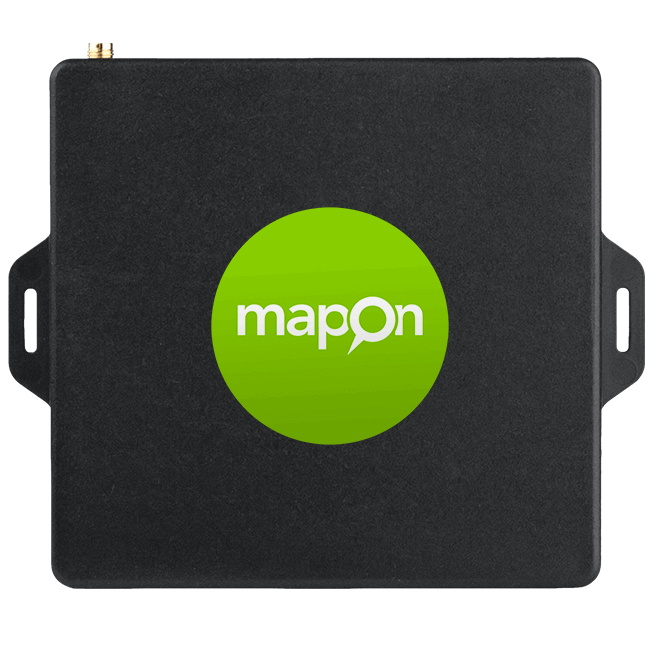

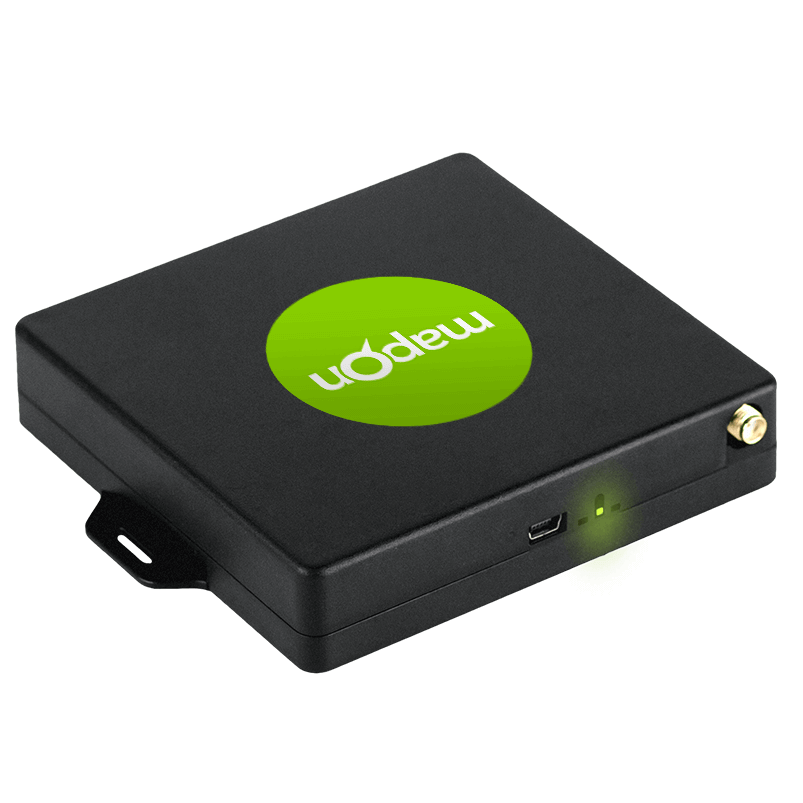

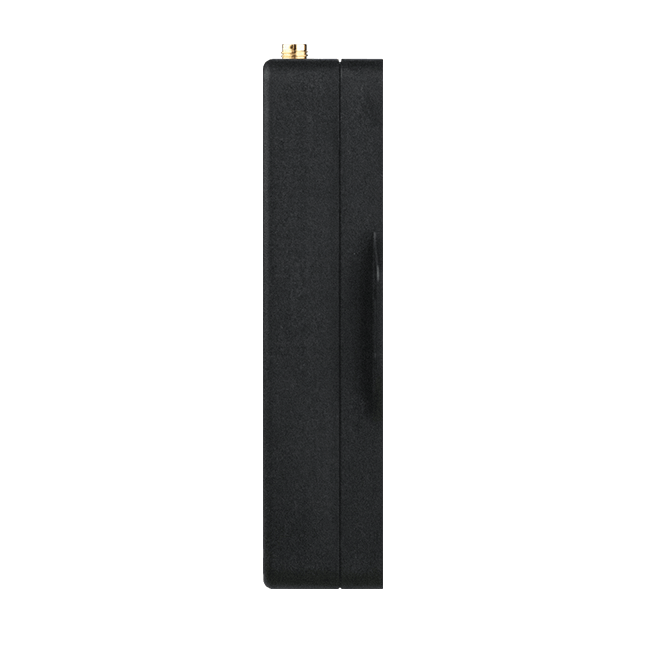

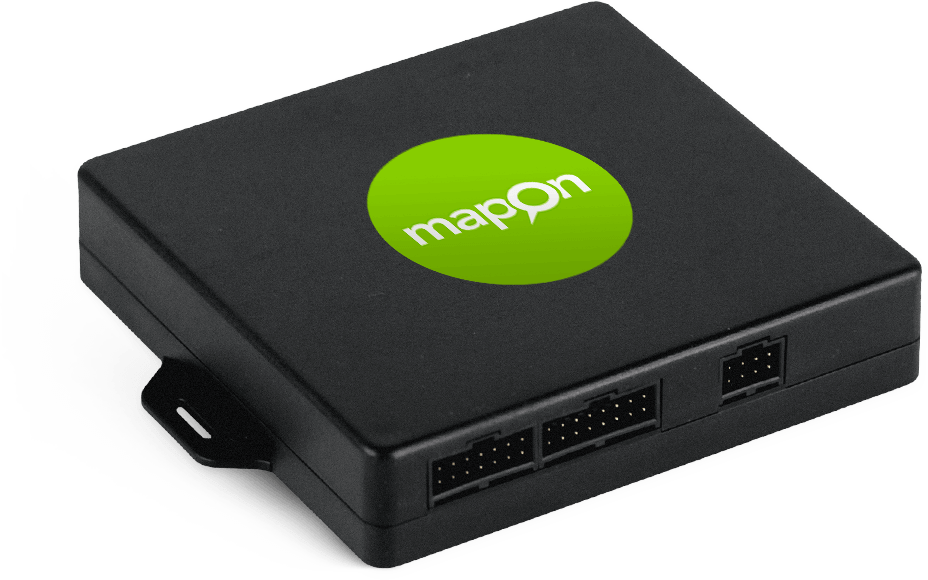

Mapon Expert

Multi-purpose tracking device with high precision and a variety of interfaces for connecting accessories.

Choose the amount 1

Ordering and installing

This is not an actual order form. Use it to receive the quotation for the specified amount of Mapon Expert devices. Our client consultants will get in touch with you and help to find the best solution for your business.

Ask an expert

Jani Asunmaa

Need help? Get in touch now

010 581 7772

jani@mapon.com

Jani Asunmaa

What we think about Mapon Expert

Mapon client consultant - Jani Asunmaa

Mapon Expert is state-of-the-art device. It has wide set of functions that are useful in standard cases as well as for custom solutions and integrations. We suggest Mapon Expert to clients who need professional solutions, including custom integrations. Mapon Expert supports integrations with refrigeration unit industry leaders Carrier and ThermoKing; as well as with HU-GO and other system providers. Mapon Expert enables to use all features of Mapon software - including remote digital tachograph download, fuel control and advanced driving behaviour. We have developed this device in-house, which means that we can quickly react to any problems or errors that may arise and also create very advanced customized solutions for your business needs. It definitely is a premium product with high quality and rich set of features.

About product

Mapon Expert is a multi-purpose tracking device with high precision and a variety of interfaces for connecting accessories.

Main features

Standalone mode with intelligent memory control, if connection with server not available
Intelligent data acquisition and transfer algorithm via GPRS (General Packet Radio Service) (TCP/IP)
Smart data roaming algorithm
Realtime GPS and sensor data acquisition and transfer
Restart button
Interfacing to vehicle on-board systems
Internal 3-axis accelerometer

General

Size and weight

Height: 101 mm
Width: 123 mm
Depth: 22 mm
Weight: 140 g

Power and battery

Li-ion backup battery 700 mAh
Operating voltage 10V to 30V DC
Average current consumption 250 mA

Memory

1x 32Mbit SPI Flash memory
2x 16Mbit SPI Flash memory

Inputs and outputs

Digital inputs

One Input reserved for ignition status
Two positive trigger inputs (max 30V)
One negative trigger input

Analog inputs

Three analog inputs (0 to 5V)
One analog input (0 to 30V)

Other

SMA connector for GPS antenna
1-Wire Input (up to 6 devices (temperature sensors DS18S20 and iButton))
2x CANbus interfaces
3x RS232 interfaces. (Digital fuel sensors, Garmin)
USB port for real time monitoring and configuration
1 digital output

GPS/GSM

Cellular

Quad band : GSM 900/1800MHz
Class 4 (+33dBm ±2dB) for 900
Class 1 (+30dBm ±2dB) for 1800
Multislot Class 8 (dual band)
Horizontal position accuracy 2.5 m
Velocity accuracy 0.1 m/s
Heading accuracy 0.5 degrees

Location

50 channels
GPS L1 frequency

Sensitivity

Tracking & Navigation 162 dBm
Reacquisition 160 dBm
Cold Start (without aiding) 148 dBm

Other

LEDs

Green (GPS)
Orange (GSM)
Red (Errors)

Environmental requirements

Operating temperature: -40° to 85° C
Relative humidity: 5% to 95% non-condensing

Standard set

Mapon Expert
External GPS antenna
Documentation
