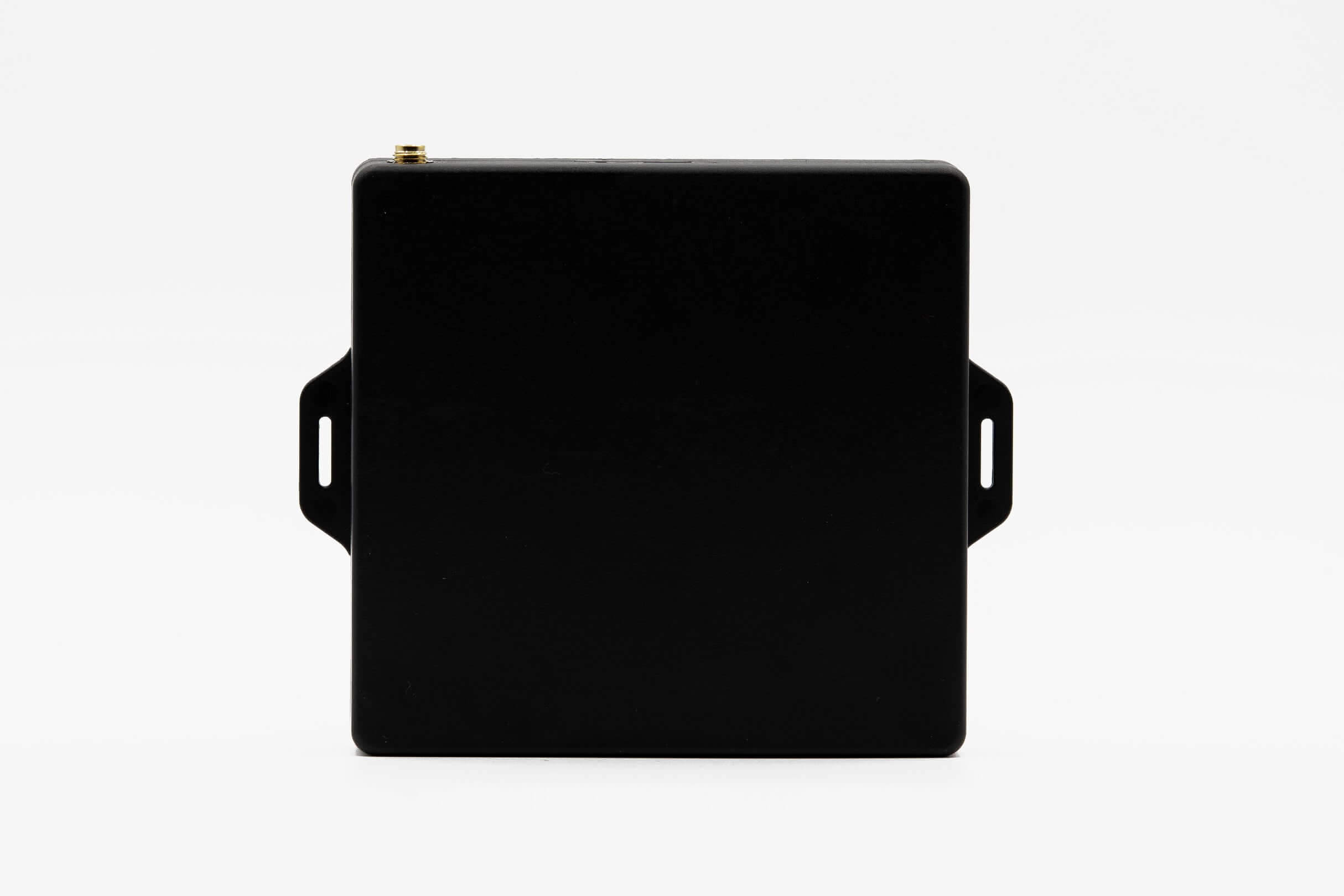

Mapon Expert

Multi-purpose tracking device with high precision and a variety of interfaces for connecting accessories. There are three versions of Mapon Expert available for you to choose from: 2G, 4G and M1.

Ordering and installing

This is not an actual order form. Use it to receive the quotation for the specified amount of Mapon Expert devices. Our client consultants will get in touch with you and help to find the best solution for your business.

Ask an expert

Need Help? Get in touch now

+371 28346870

raivis.bondars@mapon.com

Overview Specification

About the product

Mapon Expert is a precise multi-purpose GPS tracking device with a wide set of functions and compatibility options. A great choice for professional fleet management.

Main features

Standalone mode with intelligent memory control, if connection with server not available

Intelligent data acquisition and transfer algorithm via 2G/3G/4G mobile networks depending on model

Smart data roaming algorithm

Realtime GPS and sensor data acquisition and transfer

Restart button

Interfacing to vehicle on-board systems

Internal 3-axis accelerometer

State-of-the-art hardware

Raivis Bondars, Mapon Export Manager

Mapon Expert is a state-of-the-art device. It has a wide set of functions that are useful in standard cases as well as for custom solutions and integrations. We suggest Mapon Expert to clients who need professional solutions, including custom integrations. Mapon Expert supports integrations with refrigeration unit industry leaders Carrier and ThermoKing, as well as a variety of other telematics system providers. Mapon Expert enables you to use all features of the Mapon platform - including remote digital tachograph download, fuel control and advanced driving behaviour. We have developed this device in-house, which means that we can quickly react to any problems or errors that may arise and also create very advanced customized solutions for your business needs. It definitely is a premium product with high quality and rich set of features.

General

Size and weight

Height: 101 mm

Width: 123 mm

Depth: 22 mm

Weight: 140 g

Memory

64Mbit Flash memory

Power and battery

Li-ion backup battery 700 mAh

Operating voltage 10V to 30V DC

Average current consumption 250 mA

Interfaces

Digital inputs

1 input reserved for ignition status

2 positive trigger inputs (max 30V)

1 negative trigger input

Analog inputs

2x 0 to 30V

2x 0 to 5V

Other

SMA connector for GPS antenna

1-Wire input (up to 6 devices)

2 CAN bus interfaces

3 RS-232

USB port

1 digital output

GNSS/Cellular

Quad band: 850/900/1800/1900 MHz

Class 4 (2W @850/900 MHz)

Class 1 (1W @1800/1900 MHz)

GPRS Multislot Class: 12

Location

GPS, GLONASS, Galileo, QZSS

Acquisition: -149dBm

Tracking: -167dBm

Reacquisition: -161dBm

Other

Status indicator

LED

Environmental requirements

Operating temperature: -40° to 85° C

Relative humidity: 5 to 95%

Non-condensing

Standard set

Mapon Expert

External GPS antenna

Documentation

General

Size and weight

Height: 101 mm

Width: 123 mm

Depth: 22 mm

Weight: 140 g

Memory

64Mbit Flash memory

Power and battery

Li-ion backup battery 700 mAh

Operating voltage 10V to 30V DC

Average current consumption 250 mA

Interfaces

Digital inputs

1 input reserved for ignition status

2 positive trigger inputs (max 30V)

1 negative trigger input

Analog inputs

2x 0 to 30V

2x 0 to 5V

Other

SMA connector for GPS antenna

1-Wire input (up to 6 devices)

2 CAN bus interfaces

3 RS-232

USB port

1 digital output

GNSS/Cellular

4G LTE CAT 1

LTE FDD: B1/B3/B7/B8/B20/B28A

GSM/EDGE: B3/B8

Location

GPS, GLONASS, Galileo, QZSS

Acquisition: -149dBm

Tracking: -167dBm

Reacquisition: -161dBm

Other

Status indicator

LED

Environmental requirements

Operating temperature: -40° to 85° C

Relative humidity: 5% to 95%

Non-condensing

Standard set

Mapon Expert

External GPS antenna

Documentation

General

Size and weight

Height: 101 mm

Width: 123 mm

Depth: 22 mm

Weight: 140 g

Memory

64Mbit Flash memory

Power and battery

Li-ion backup battery 700 mAh

Operating voltage 10V to 30V DC

Average current consumption 250 mA

Interfaces

Digital inputs

1 input reserved for ignition status

2 positive trigger inputs (max 30V)

1 negative trigger input

Analog inputs

2x 0 to 30V

2x 0 to 5V

Other

SMA connector for GPS antenna

1-Wire input (up to 6 devices)

2 CAN bus interfaces

3 RS-232

USB port

1 digital output

GNSS/Cellular

LTE CAT M1

LTE FDD: B1/B2/B3/B4/B5/B8/B12/B13/ B18/B19/B20/B25/B26/B28

LTE TDD: B39

EGPRS: 850/900/1800/1900MHz

Location

GPS, GLONASS, Galileo, QZSS

Acquisition: -149dBm

Tracking: -167dBm

Reacquisition: -161dBm

Other

Status indicator

LED

Environmental requirements

Operating temperature: -40° to 85° C

Relative humidity: 5% to 95%

Non-condensing

Standard set

Mapon Expert

External GPS antenna

Documentation

LTE CAT M1 specification

4G LTE CAT 1 specification

2G specification
